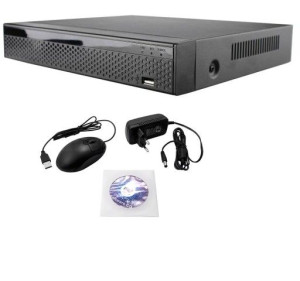

Rejestrator Xvr/ip 16 Kamerowy 8mpx 5w1 H.265+

Opis

REJESTRATOR 16kanałowy  XVRDA3116DB  12TB do 8 MpxG_VISION. XVRDA3116DB16CH H.265 5IN1 XVR 8M• Support AHD/CVI/TVI/IP/Analog Camera Input• Up to HD 8MP and IP 8MP Resolution Recording• Support HD Output, VGA and CVBS Video Output• Support Max. 16CH HD or 32CH IP Camera Input• Support 2 SATA up to 16TB CapacitySystemMain ProcessorHI3531DOperating SystemEmbedded LINUXVideoInputAnalog: 16*(AHD/TVI/CVI:  8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP;  AHD/TVI: 3MP;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)Analog+Network: 14*Analog+2*network(Max 8MP), 12*Analog+4*network(Max 8MP), 10*Analog+6*network(Max 8MP), 8*Analog+8*network(Max 8MP), 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP)Network: 32*network(Max 8MP)(Total incoming bandwidth ≤160M)Input16CH BNCSignal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/NetworkOutput1 HD, 1 VGAAudioInput6 Channel, RCATwo-way AudioNOOutput1 Channel, RCAAlarmSensor Input4 ChannelOutput1 ChannelMotion Detection16 Channel(max 32 Channel in pure network mode)Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)Email AlarmSend Image to The Designated E-mailPTZInterfaceRS485ProtocolPelco-D, Pelco-PBaud Rate110~921600Address0~255DisplayVGAResolution: 1920 × 1080P /60Hz, 1280 × 1024 /60HzHD OutputResolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P /60Hz,  1280 × 1024/60HzDisplay Split36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1ChannelPrivacy Masking3 Rectangular Zones (Each camera)OSDCamera title, Time, Video loss, Alarm, Motion detection, RecordingRecordingVideo CompressionH.265/H.265+/H.264+/H.264Audio CompressionG711uResolution8MP(3840×2160),5MP(2592×1944),4MP(2560×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)Video Qualityworst/worse/ordinary/well/bestRecord RateAnalog:PAL:8MP(3840×2160 16*8fps),5MP(2592×1944 16*12fps),4MP(2560×1440 16*15fps),3MP(2048×1536 16*18fps),1080P(1920x1080 16*25fps),720P(1280×720 16*25fps), 960H(960×576 16*25fps)NTSC:8MP(3840×2160 16*8fps),5MP(2592×1944 16*12fps), 4MP(2560×1440 16*15fps),3MP(2048×1536 16*18fps),1080P(1920x1080 16*30fps),720P(1280×720 16*30fps), 960H(960×480 16*30fps)Pure IP(H.265):PAL:8MP@17×25fps,5MP@26×25fps,4MP@32x25fps,3MP@32×25fps,1080P@32×25fps,960P@32×25fps,720P@32×25fps,D1@32×25fpsNTSC: 8MP@17×30fps,5MP@26×30fps,4MP@32×30fps,3MP@32×30fps,1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fpsRecord ModeManual\Timer\Motion DetectionPlayback & BackupDecode Capability9CH 720P@30fpsSync PlaybackPure Analog: 16CH 8MP@8fps, 16CH 5M@12fps, 16CH 4M@15fps, 16CH 3M@18fps, 16CH 1080p@30fpsMix Mode: 2CH 8MP@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fpsPure IPC: 2CH 8MP@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 6CH 3M@30fps, 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fpsRemote Playback4 Channel / 1 ChannelSearch ModeALL, Channel, Manual, Time, Date, Motion DetectionPlayback FunctionsPlay, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screenSmart Phone Playback4 ChannelBackup ModeUSB Device(with fomat FAT 32 )/Network/FTPNetworkInterface1 RJ45 10M/100/1000M Adaptive Ethernet InterfaceNetwork FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCPDDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYEWeb BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10Extra StreamCIF(1~30fps)Smart PhoneiPhone, ipad,  Android, Android padHard Disk DriverInterface Type2 SATA InterfaceCapacity2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB)GeneralLanguageChinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, FarisaGerman, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, GreekUTC ControlYESUSB Interface2 USB 2.0 InterfacesPower consumptionDC 12VWorking Environment-10~55℃/10~90%Dimension (W×D×H)310*295*46(mm)Weight3.5kg (Without HDD)
